RJ45 Cable Lan Tester Network Cable Tester RJ45 RJ11 RJ12 CAT5 UTP LAN Cable Tester Networking Tool Network Repair Tool

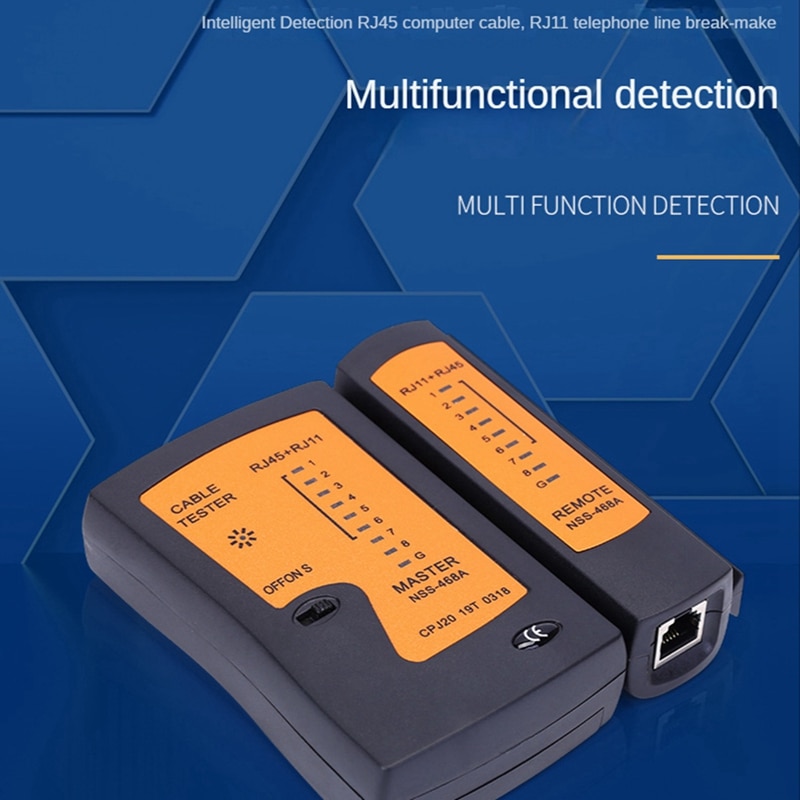

Test of double-twisted cables: Switch on the power. (S is slow automatic grade, Mis manual.) Put cables into both main tester and remote tester. The lights of the main tester will turn on sequently form 1 to G.
Main tester: 1-2-3-4-5-6-7-8-G
Remote tester: 1-2-3-4-5-6-7-8-G RJ45
1-2-3-4-5-6 RJ11

Color: black + orange

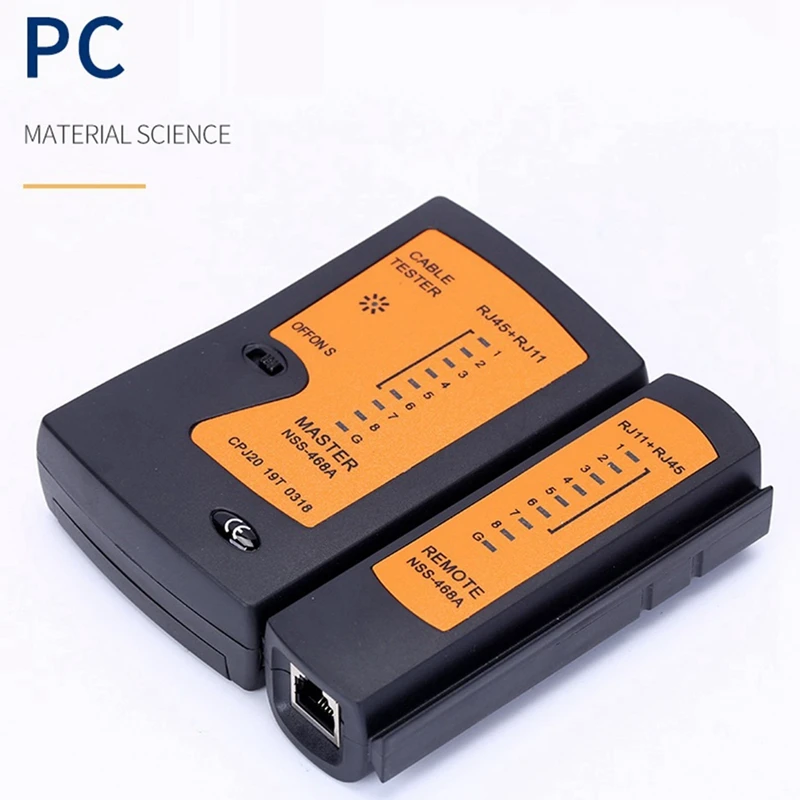

Material: PC
Following are abnormal connections:
If one cable, for example cable NO.3 is open circuited, the two NO.3 lights of the main tseter and remote tester will not turn on.
If several cables are not connected, several lights will not turn on respectively. If less than two cables are conntected, none of the lights is on.
If two ends of a cable is disordered, for example NO. 2and NO. 4, then displays on:
Main tester: 1-2-3-4-5-6-7-8-G
Remote tester: 1-4-3-2-5-6-7-8-G
If two cables are short circuited, neither of the corresponding lights is on of the remote tester while main tester remains unchanged. If three cables, including three, are short circuited, none of the corresponding liaghts is on.
If test patch panels or wall plate outlels, two cables which can match each other (RJ45) will be connected to the tester.
If test cables of the same axes, BNC turns on when the cable works.
9V battery is used in this tester. Battery is advised to change if any weak light oppears.( Battery is not included.)
Different batches, the characters on the line measuring instrument may be different, which does not affect

Package Contents:

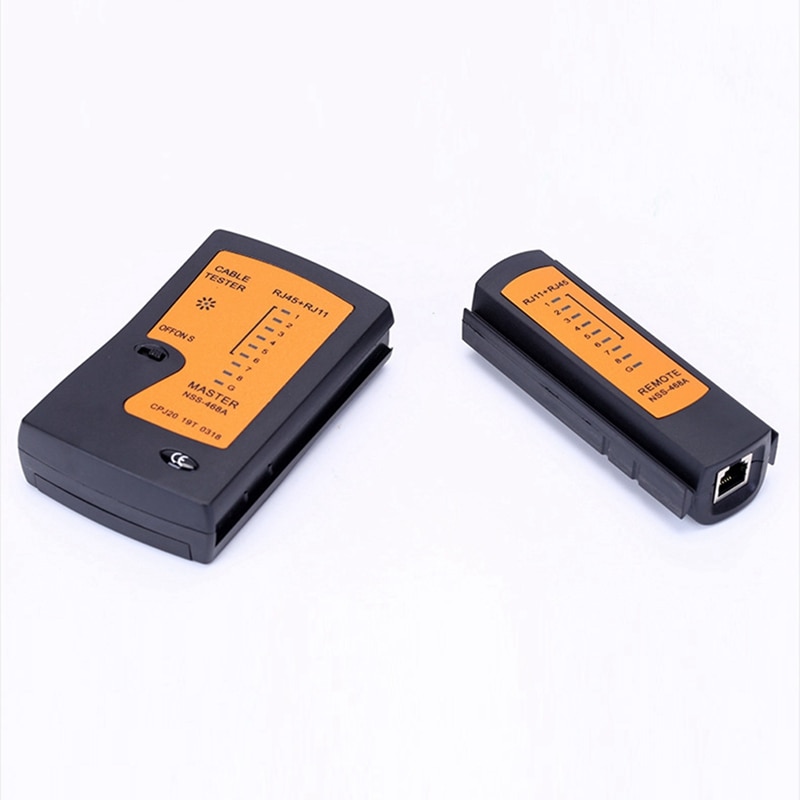

1 x cable tester
1 x storage bag

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
